Description

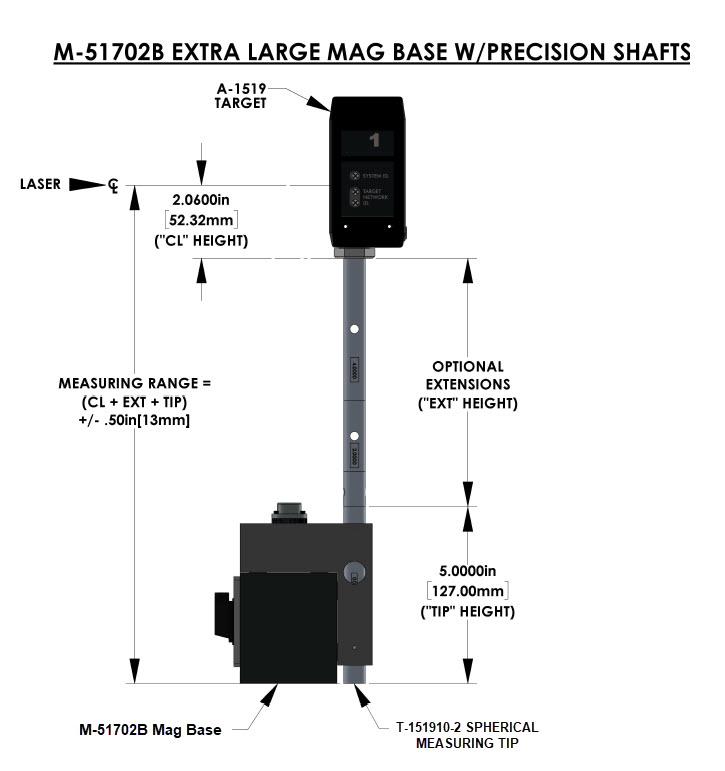

Extra-large magnetic base used with our 3-piece 12.25 in. (311.2 mm) rods to hold the A-1519-2.4XBE or A-1520-2.4XBE Targets for measuring flatness, straightness, parallelism and squareness of surfaces and the travel of machine tool axes. Can be used with T-151910 Spherical Tip Rod with the T-151911-T-151937 Precision Rod Inserts to set surfaces to specific dimensions. See the drawing. The M-51702B is used where the length of the mounting rods exceeds 2 feet, especially on vertical surfaces.
Applications
- Surface flatness, straightness and squareness
- Machine tool axis alignment
- Roll alignment
Features
Specifications
Material:
Aluminum and high strength ferrite
Weight:
5.5 lbs. (2.5 kg)
Size:
2.75 W x 4.5 H x 3.90 in. D (w/o thumb-screw) (70 x 115 x 100 mm) - w/o handle
Holding Force:
1250 N (281 lbs, or 125 kgf)
