Description

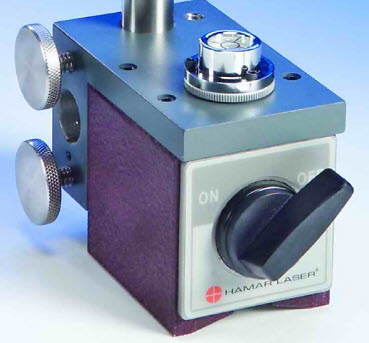

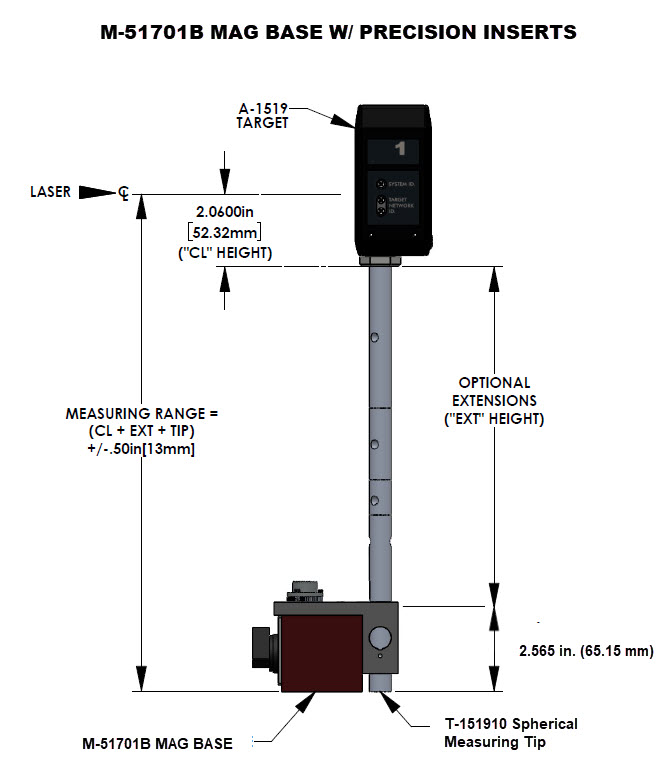

Magnetic base used with our 3-piece 12.25 in. (311.2 mm) rods to hold the A-1519-2.4XBE or A-1520-2.4XBE Targets for measuring flatness, straightness, parallelism and squareness of surfaces and the travel of machine tool axes. Can be used with T-151910 Spherical Tip Rod with the T-151911-T-151937 Precision Rod Inserts to set surfaces to specific dimensions. See the drawing.
Applications
- Surface flatness, straightness and squareness
- Machine tool axis alignment
- Roll alignment
Features
Specifications
Material:
Aluminum and high strength ferrite
Weight:
2.78 lb. (1.26 Kg)
Size:
1.96W x 2.57H x 3.05L in. D (w/o thumb-screw) (50 x 65 x 77 mm) - w/o handle
Holding Force:
800 N (135 lbs or 60 kgf)
Drawings
