A-1519-2.4XBE-RO Integrated Wireless Target with Readout Display

Applications

• Caster Segments
• Boring Mills and Large Lathes
• Gantry, Spar Mills and VTLs
• Horizontal & Vertical Machining Centers
• Injection Molding Machines
• Machine Bed Leveling
• Presses
• Roll Alignment

Features

• Operate in both Single and Dual-Axis Modes (depending on the readout used) and use XBee® radio technology:
  • Single-Axis Scanning Mode – used with Hamar Laser’s continuously sweeping lasers (L-702SP & L-730/L-740 series) for measuring the flatness, straightness, squareness and parallelism of both machine tools and rolls.
  • Dual-Axis Mode – used to detect non-rotating laser beams in such applications as steam turbine bore alignment.
• Features an integrated rotating readout display mounted directly on the target body. The readout swivels for easy viewing from any angle, eliminating the need for a separate display unit and removing the cable snag hazard of the previous wired readout configuration.
• Features 2-axis, super-linear, position-sensitive detectors (PSDs) with automatic background-light correction for extremely accurate readings.
• The integrated readout display provides:
  • User-selectable display in inches or millimeters
  • Readings in either Relative (Zero) or Absolute mode
  • Bright numeric LED display with 4-decimal-place resolution (.0000 in. or 0.000 mm)
  • Powered directly by the target with no separate battery required
• Additional display options are also available:
  • The R-1357-2.4XBE Rugged PDA display
  • The R-1307-2.4XBE Readout for 2 targets
  • The R-1307W-2.4XBE Readout for 2 targets
  • The A-910-2.4XBE Computer Interface for use on a laptop
• The A-1519-2.4XBE-RO has a resolution of .00002 in. (0.0005 mm) and a measuring range of ±.55 in. (±14 mm). The A-1520-2.4XBE-RO offers double the resolution and accuracy with a range of ±.10 in. (±2.5 mm).
• Linearized accuracy of ±.00015 in. (±0.0038 mm) for the A-1519-2.4XBE-RO; ±.00006 in. (±0.0015 mm) for the A-1520-2.4XBE-RO.
• Targets can be used out to 100 feet (30.5 mm) from the laser.

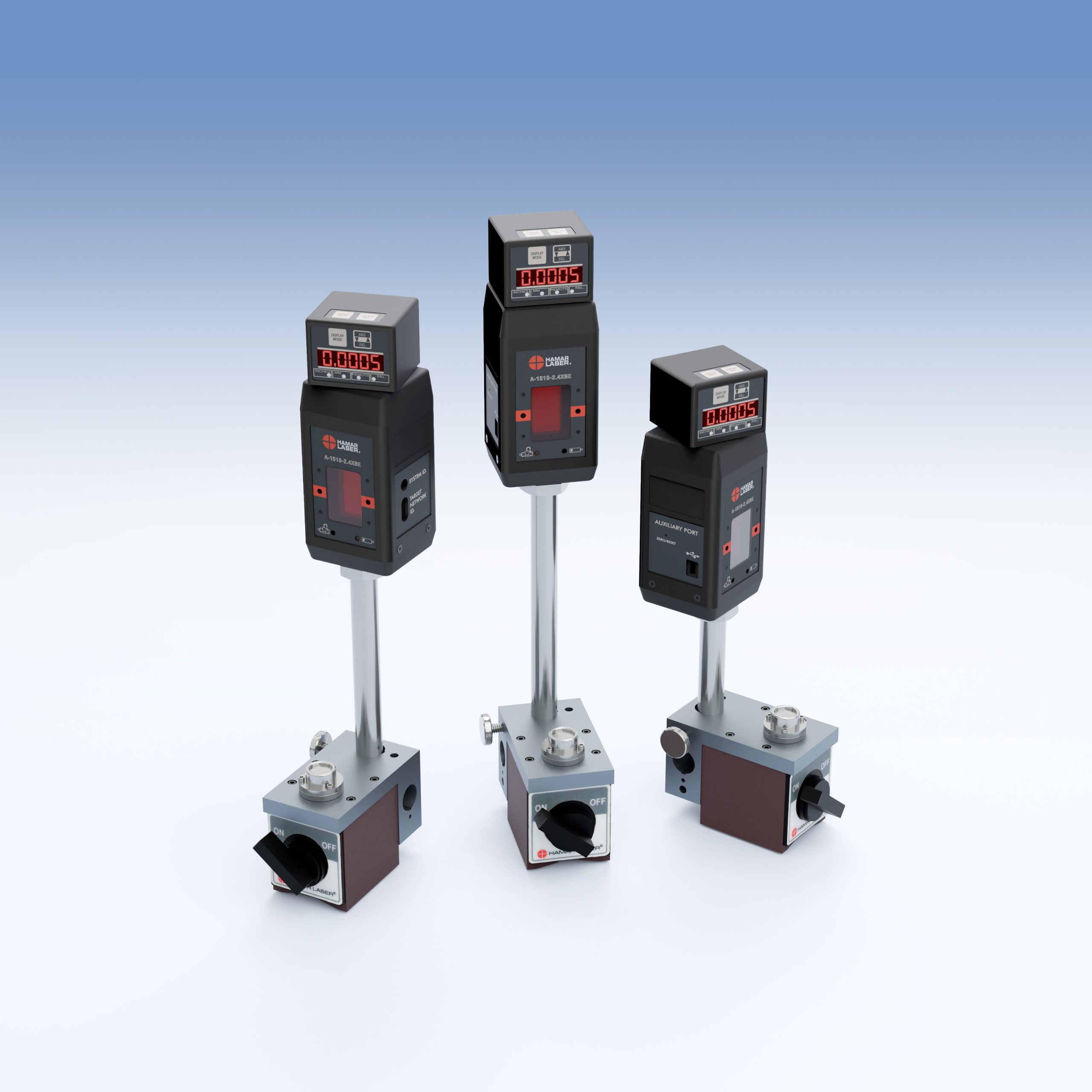

• The A-1519 package include the target, a magnetic base and three insert posts: 6.25 in., 4 in., and 2 in. (158.8 mm, 101.6 mm and 50.8 mm) for coarse height adjustment.
• Completely automatic on/off operation with no switches, wires or connections. The target activates when the laser beam sweeps across the target cell and flashing target LEDs provide immediate “on/off target” status.
• Powered by 2 internal lithium-ion batteries for up to 11.5 hours of continuous use. Comes with AC adapter/charger, low battery and charging indicators.
• Targets can also be charged with the optional A-1519CS-4 Charging Station that charges up to 4 targets simultaneously.
• Communication working distance (PDA/PC Base Station to target) is 150 feet (45 m) or greater.

Specifications

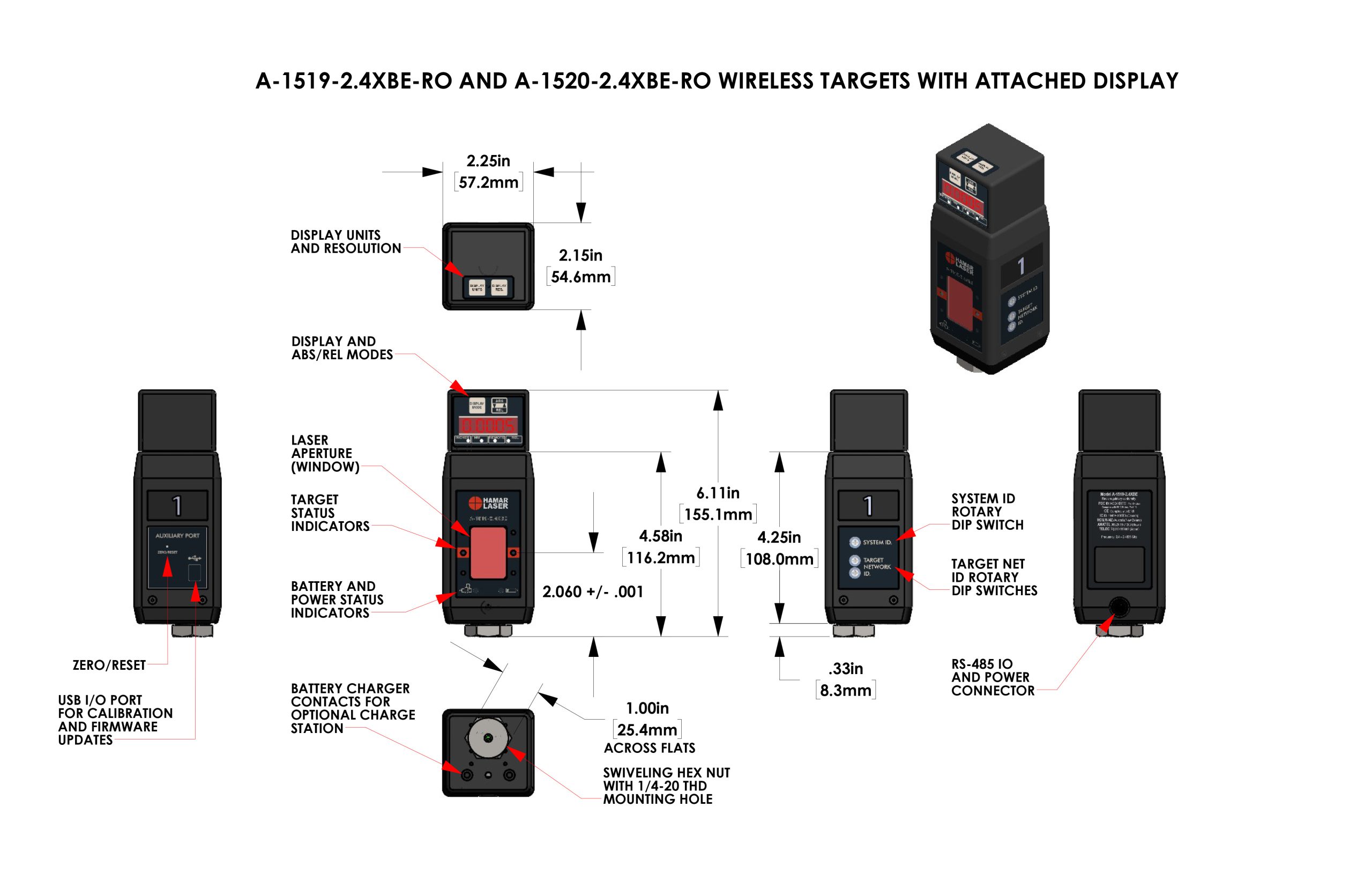

Drawings
