Description
The A-703SP-SE-CLT-4.0 is a straight-edge locating tool designed for granite surface plates with a 4.0 in. (101.6 mm) border width. A built-in suction cup holds the tool firmly in place while the straight edge is pushed against the side of the plate, positioning the target directly over the correct line segment for accurate flatness measurement.
Applications
- Granite surface plate flatness
- Steel surface plate flatness
Features

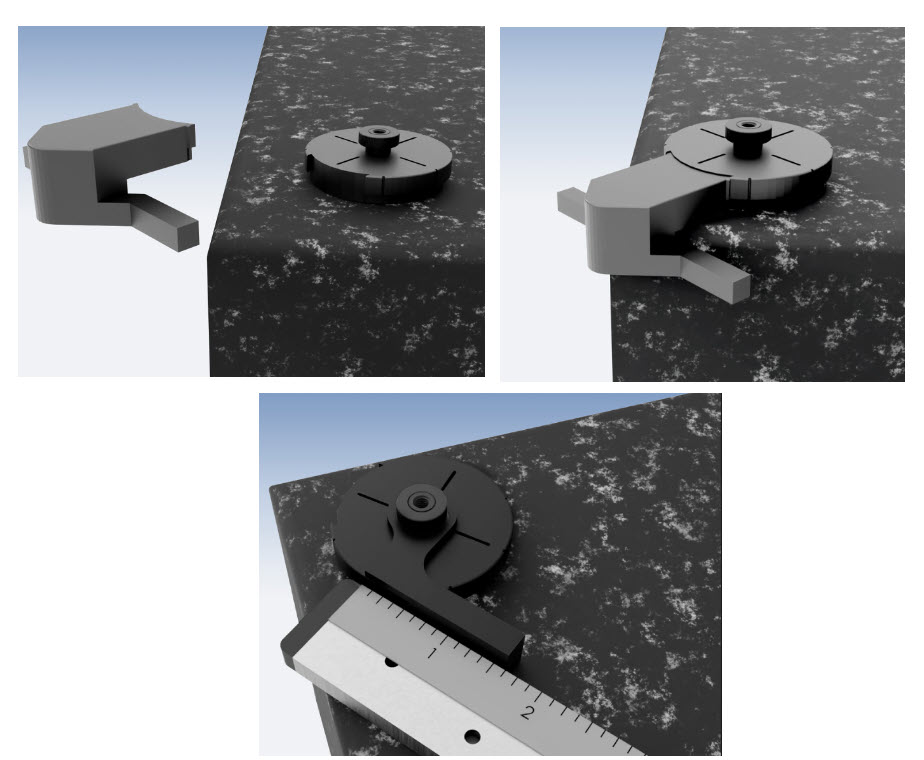

- Designed to fit over the corners and midpoints of the plate to correctly position the straight edge relative to the line segment to be measured.
- Rugged plastic design with suction cup to hold it in place.
- Positions the straight edge on the corners and midpoints of the plate.
- For 4.0 in. (101.6 mm) border width from the edge of the plate.
Specifications
Material:
plastic
Weight:
a few oz
Border Width:
4.0 in. (101.6 mm) from the edge of the plate
Drawings
