T-1602 Tight Space Roll Alignment Fixture

Description

To aid in the alignment of rolls that are too close to fit our standard roll
alignment fixture, Hamar Laser has designed the T-1602 Tight-Space
Roll Alignment Fixture. It is designed to work with rolls that are next
to each other with spacing from .40 to 5.4 in. (10-137 mm). It can also
be used on non-magnetic rolls that are much farther apart by adding
support posts.

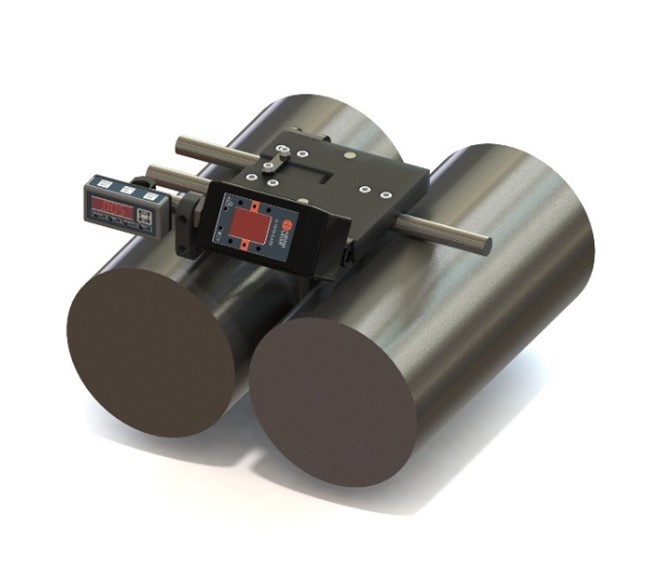

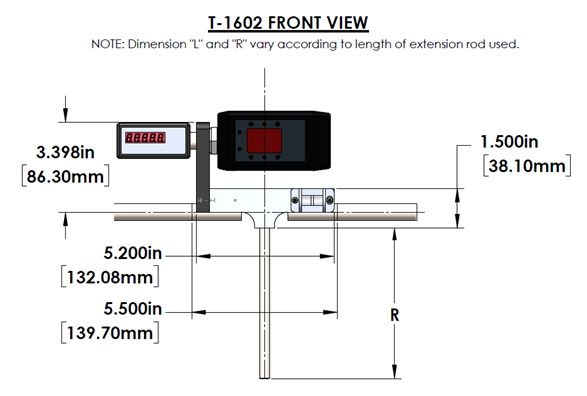

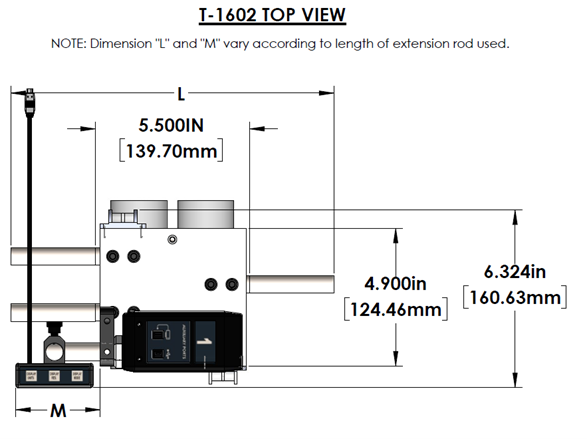

It features target support posts that sit on top of both rolls to hold the
T-1602 and A-1519-2.4XBE. There are two .38 in. (9.5 mm) diameter
posts that touch on the side of the rolls to measure its alignment in the
horizontal measuring axis. A support post for the R-1308 Readout is
included. There are also levels to ensure that the 2 rolls are level to
each other before taking a measurement.
