Description
M-1519B-02 Extra-Large Magnetic Base and 3-Piece Target posts is our extra-large magnetic base that is used with the A-1519-2.4XBE and A-1520-2.4XBE Wireless Single-Axis Targets and similar variants. It is used to hold the target with extra-long support posts for measurement of straightness, flatness, squareness and parallelism. Allows the use of posts up to 36 in. (915 mm).
Applications
- Machining center alignment
- Floor mill alignment
- Gantry alignment
- Roll alignment
- Multiturn alignment
- High-accuracy leveling
- Flatness/straightness of large parts
Features
- Powerful magnet with on/off switch and 275 lb (125 kg) of holding force.
- 12.25 in. (311.2 mm) target support posts in 2 pieces: 2.25 in, (55.9 mm), 4.00 in. (101.6 mm) and 6.00 in. (152.4 mm)
- Target connects to support post via a 1/4-20 threaded mounting hole on the target’s swivel nut.
Specifications
Material:
Aluminum, cast iron, ferrite and stainless steel
Dimensions:
3.13 H x 2.75 W x 2.75 L (79.5H x 70.0W x 70.0 W mm)
3-Piece Mounting Posts Length:
12.25 in. (311.2 mm) target support posts in 2 pieces: 2.25 in, (55.9 mm), 4.00 in. (101.6 mm) and 6.00 in. (152.4 mm)
3-Piece Mounting Posts Diameter:
.625 in. (15.88 mm) with 1/4-20 threaded holes and mounting screws
Weight:
Mag base and posts - 9.75 lbs. (4.42 kg)
Magnetic Holding Force:
275 lb (125 kg)

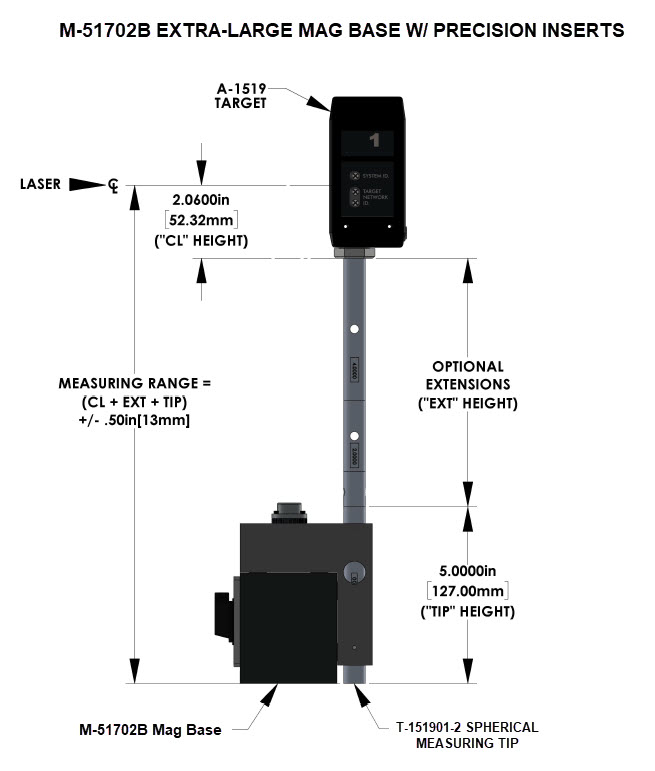

Drawings
